Azure Monitor Agent to monitor Windows devices (1/2) – Setup

jannikreinhard

In this blog post we want to have a closer look into a way to collect data from client systems to monitor them. With endpoint analytics Microsoft provides a very powerful way to analyze clients, remediate potential issues or also detect anomalies in the field. If you are interested in unaggregated and more detailed data to build custom solutions then the Log Analytics management agent is the right solution for you. This is the first part of a small series with two parts. In this part we will check how this service works and how to set it up, and in the other part how you can work with the data.

Diagram shows monitored object purpose and association.

Content

  1. Content
  2. What is the azure monitor agent?
  3. How does it work?
  4. What are the prerequisites?
  5. How to deploy the monitoring agent
    1. Create log analytics workspace
    2. Agent installation and deployment
  6. Create data collection rule
  7. Create a Monitored Object
    1. Assign the Monitored Object Contributor role
    2. Create Monitored Object
    3. Associate DCR to Monitored Object
    4. Script
  8. Troubleshoot
  9. Additional resources

What is the azure monitor agent?

The Azure Monitor Agent (AMA) collects monitoring data from the operating system of an Azure or a physical machine and delivers it to Azure Monitor Log Analytics to be consumed by Azure Monitor and other services, such as Microsoft Sentinel and Microsoft Defender for Cloud. You can collect performance data as well as event logs or also other telemetry.

How does it work?

First, you are required to establish a ‘Monitored Object’ (MO), which acts as a representation of the Microsoft Entra ID tenant within the Azure Resource Manager (ARM). It is the ARM entity that Data Collection Rules link to. The MO only needs to be established once for any quantity of machines under a single Microsoft Entra ID tenant. The current limitation of this connection is that it’s only applicable to the Microsoft Entra ID tenant scope. This implies that any settings applied to the Microsoft Entra ID tenant will also be applied to all devices within that tenant that run the agent installed via the client installer. This does not affect agents installed as a VM extension. The attached image illustrates this process:

Diagram shows monitored object purpose and association.

Given that an MO is a tenant-level resource, the scope of the permissions will be greater than a subscription scope. Therefore, an Azure tenant administrator may be required to carry out this step. To do this, you need to elevate the Microsoft Entra ID Tenant Admin to Azure Tenant Admin. This will provide the Microsoft Entra ID admin with ‘Owner’ permissions at the root scope.

What are the prerequisites?

  • Network access to the following endpoints:
    • * .global.handler.control.monitor.azure.com
    • *.handler.control.monitor.azure.com
    • <log-analytics-workspace-id>.ods.opinsights.azure.com
  • Microsoft Visual C++ Redistributable
  • Windows client OS
  • The machine must be domain joined to a Microsoft Entra ID tenant (AADj or Hybrid AADj machines) to get a device token
  • Azure Tenant admin permissions

If you are a Microsoft Entra ID Tenant admin you can elevate your permissions to Azure Tenant admin with these instruction or more information below.

How to deploy the monitoring agent

Create log analytics workspace

  • Log in to the Azure portal
  • Search for Log Analytics and select the Log Analytics workspace service
Azure Monitor Agent to monitor Windows devices (1/2) – Setup
  • Click + Create
Azure Monitor Agent to monitor Windows devices (1/2) – Setup
  • Select the Subscription and a Resource group or create a new one
  • Enter an Name for the Workspace and select a Region
  • Click Review + Create
Azure Monitor Agent to monitor Windows devices (1/2) – Setup
  • Click Create
Azure Monitor Agent to monitor Windows devices (1/2) – Setup

Agent installation and deployment

  • Download the MSI from the following URL
msiexec /i AzureMonitorAgentClientSetup.msi /qn
ParameterDescription
INSTALLDIRDirectory path where the agent binaries are installed
DATASTOREDIRDirectory path where the agent stores its operational logs and data
PROXYUSEMust be set to “true” to use proxy
PROXYADDRESSSet to Proxy Address. PROXYUSE must be set to “true” to be correctly applied
PROXYUSEAUTHSet to “true” if proxy requires authentication
PROXYUSERNAMESet to Proxy username. PROXYUSE and PROXYUSEAUTH must be set to “true”
PROXYPASSWORDSet to Proxy password. PROXYUSE and PROXYUSEAUTH must be set to “true”
CLOUDENVSet to Cloud. “Azure Commercial”, “Azure China”, “Azure US Gov”, “Azure USNat”, or “Azure USSec
  • You can find more information here
  • To ensure that the installation is completed open the Control panel and navigate to Control Panel\Programs\Programs and Features and check if you can find the Azure Monitor Agent
Azure Monitor Agent to monitor Windows devices (1/2) – Setup

You can create an intunewin file to deploy the agent as a Win32 app via Intune. You can find an instruction deploy a Win32 app with Intune cmtrace.

Create data collection rule

  • Open the Log analytics workspace and select Agents
  • Click Data Collection Rules
Azure Monitor Agent to monitor Windows devices (1/2) – Setup

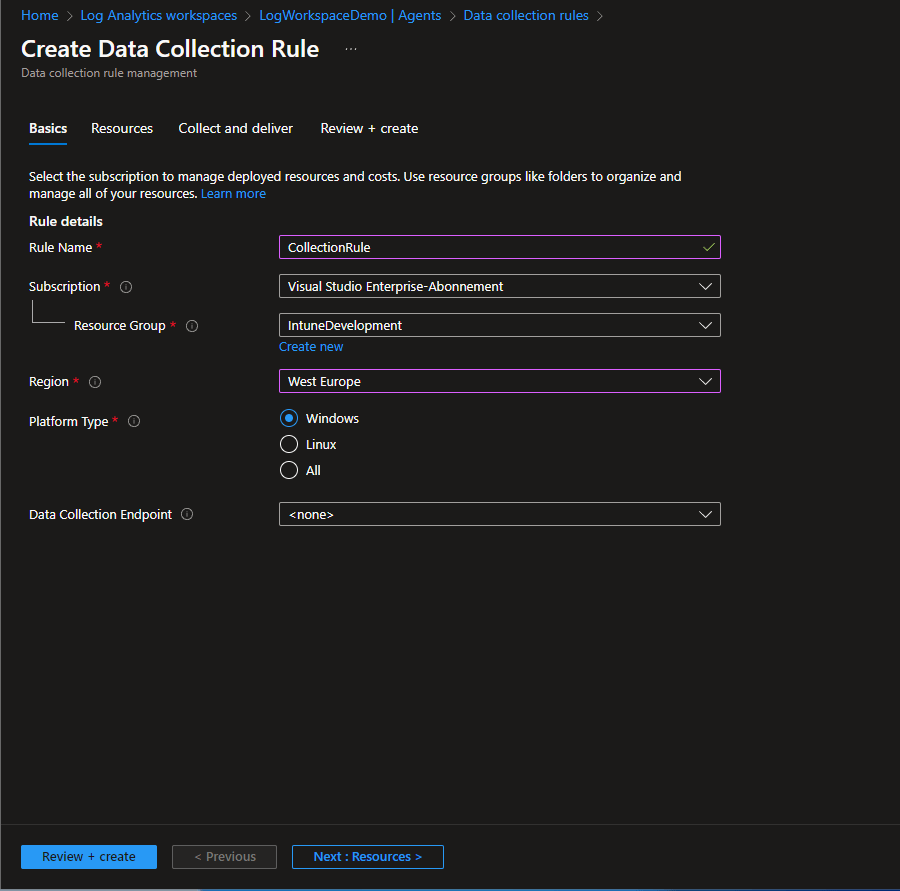

  • Enter a Rule name and select the Subscription / Resource group and the Region
  • Click Next
Azure Monitor Agent to monitor Windows devices (1/2) – Setup
  • Click + Add resource
  • Select the resources (If you have one in the list you want to add like an Azure VM) and click Apply
  • Click Next
Azure Monitor Agent to monitor Windows devices (1/2) – Setup

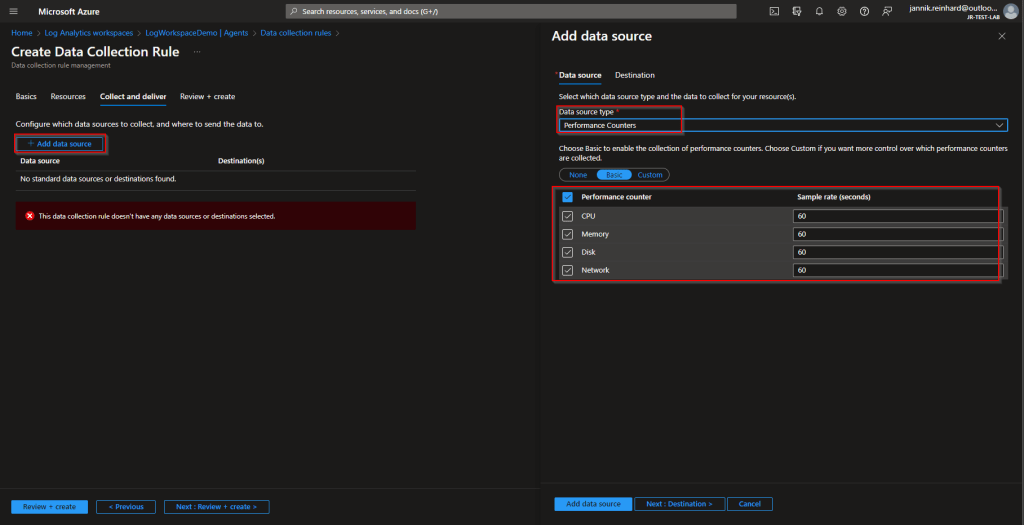

  • Click + Add data source
  • Select an type and the metrics
Azure Monitor Agent to monitor Windows devices (1/2) – Setup

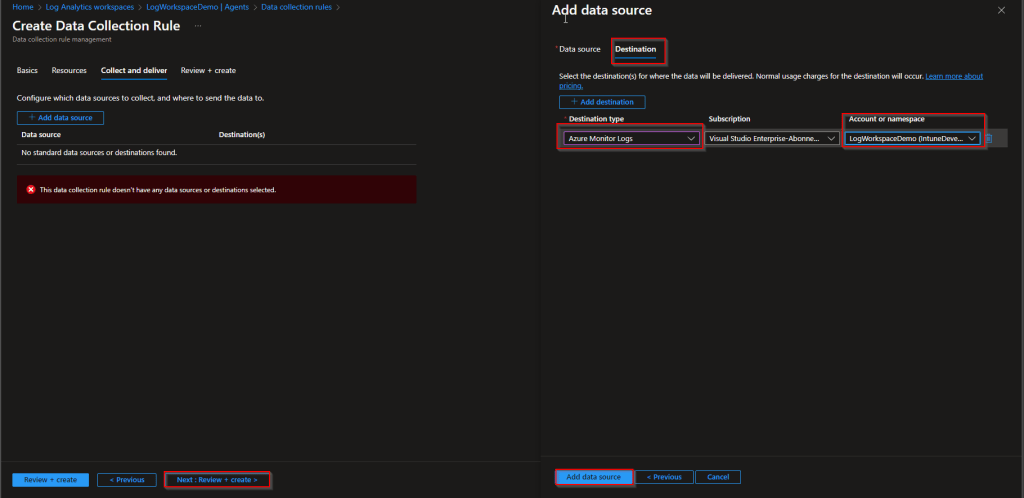

  • Select Destination and select Azure Monitor Logs
  • Select your workspace
  • Click Add data source and Next
Azure Monitor Agent to monitor Windows devices (1/2) – Setup

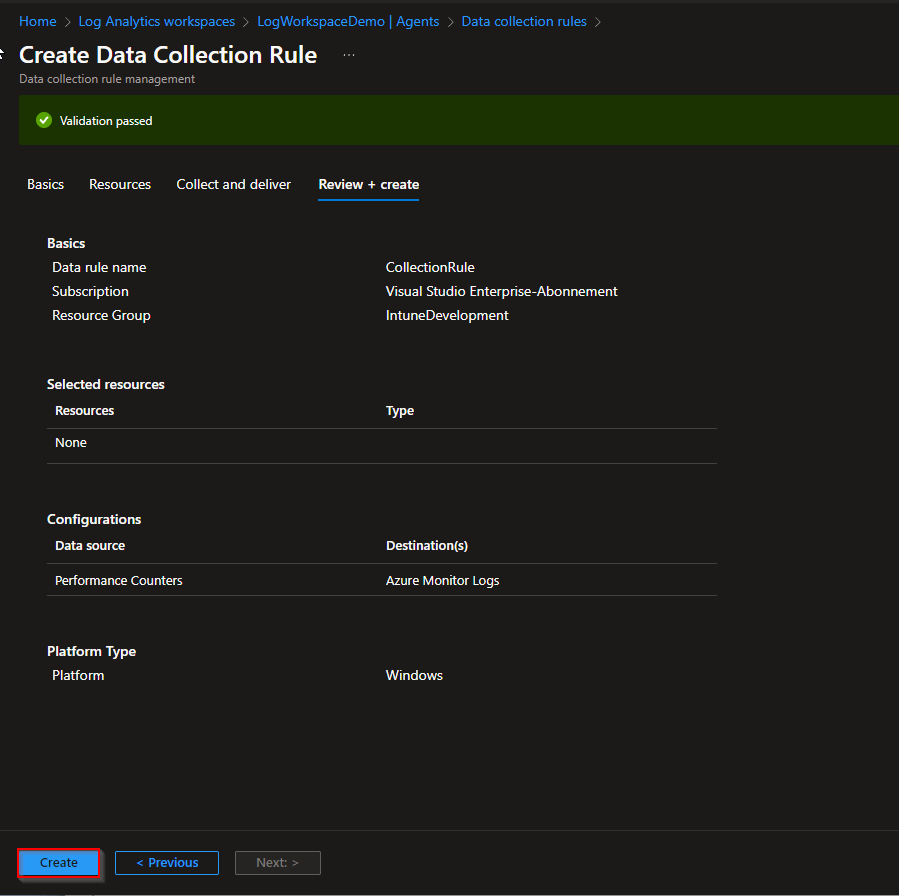

  • Click Create
Azure Monitor Agent to monitor Windows devices (1/2) – Setup

Create a Monitored Object

Assign the Monitored Object Contributor role

  • Generate an AssignmentGUID via this link or run [guid]::NewGuid() in powershell
  • Assign the Monitored Object Contributor role to a user or a group. You have to do this via the management api call:

Call

PUT https://management.azure.com/providers/microsoft.insights/providers/microsoft.authorization/roleassignments/{roleAssignmentGUID}?api-version=2021-04-01-preview

Body

Fill in here the Id of your user or group

{
	"properties":
	{
		"roleDefinitionId":"/providers/Microsoft.Authorization/roleDefinitions/56be40e24db14ccf93c37e44c597135b",
		"principalId":"aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa"
	}
}

Header

  • Add an Azure ARM Token. You can get this token via the Get-AzAccessToken command.

Create Monitored Object

During this stage, the Monitored Object is established specifically for the Microsoft Entra ID Tenant scope. Its purpose is to serve as a representation of client devices that have been authenticated with the identity of that particular Microsoft Entra ID Tenant.

  • Run the following command and replace the Microsoft Entra ID tenant with the Id of your tenant

Call

PUT https://management.azure.com/providers/Microsoft.Insights/monitoredObjects/{AADTenantId}?api-version=2021-09-01-preview

Body

Fill in here the location

{
    "properties":
	{
        "location":"westeurope"
    }
}

Associate DCR to Monitored Object

  • Run the following command and replace the MOResourceId, associationName, subscriptionId, resourceGroupName, DCRName with the correct entries

Call

PUT https://management.azure.com/{MOResourceId}/providers/microsoft.insights/datacollectionruleassociations/{associationName}?api-version=2021-09-01-preview

Body

Fill in here the location

{
	"properties":
	{
		"dataCollectionRuleId": "/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/providers/Microsoft.Insights/dataCollectionRules/{DCRName}"
	}
}

Script

The script is from the official Microsoft documentation but adapted so that it works and to simplify it.

  • You can run this PowerShell script to have the full workflow
$TenantID = ""  #Your Tenant ID
$SubscriptionID = "" #Your Subscription ID
$ResourceGroup = "" #Your resourcegroup
$associationName = "" #You can define your custom associationname, must change the association name to a unique name, if you want to associate multiple DCR to monitored object
$DCRName = "" #Your Data collection rule name
$Location = "" #Use your own loacation westeurope
$UserPrincipalId = ""

Connect-AzAccount -Tenant $TenantID

#Select the subscription
Select-AzSubscription -SubscriptionId $SubscriptionID

#Create Auth Token
$auth = Get-AzAccessToken

$AuthenticationHeader = @{
    "Content-Type" = "application/json"
    "Authorization" = "Bearer " + $auth.Token
}

# Elevate access for a Global Administrator
$uri = "https://management.azure.com/providers/Microsoft.Authorization/elevateAccess?api-version=2016-07-01"
$response = Invoke-RestMethod -Method POST -Uri $uri  -Headers $AuthenticationHeader


#1. Assign ‘Monitored Object Contributor’ Role to the operator
$newguid = (New-Guid).Guid

$body = @"
{
            "properties": {
                "roleDefinitionId":"/providers/Microsoft.Authorization/roleDefinitions/56be40e24db14ccf93c37e44c597135b",
                "principalId": `"$UserPrincipalId`"
        }
}
"@

$requestURL = "https://management.azure.com/providers/microsoft.insights/providers/microsoft.authorization/roleassignments/$newguid`?api-version=2021-04-01-preview"


Invoke-RestMethod -Uri $requestURL -Headers $AuthenticationHeader -Method PUT -Body $body


##########################

#2. Create Monitored Object

# "location" property value under the "body" section should be the Azure region where the MO object would be stored. It should be the "same region" where you created the Data Collection Rule. This is the location of the region from where agent communications would happen.
$requestURL = "https://management.azure.com/providers/Microsoft.Insights/monitoredObjects/$TenantID`?api-version=2021-09-01-preview"
$body = @"
{
    "properties":{
        "location":`"$Location`"
    }
}
"@

$Respond = Invoke-RestMethod -Uri $requestURL -Headers $AuthenticationHeader -Method PUT -Body $body -Verbose
$RespondID = $Respond.id

##########################

#3. Associate DCR to Monitored Object
#See reference documentation https://learn.microsoft.com/en-us/rest/api/monitor/data-collection-rule-associations/create?tabs=HTTP

$requestURL = "https://management.azure.com$RespondId/providers/microsoft.insights/datacollectionruleassociations/$associationName`?api-version=2021-09-01-preview"
$body = @"
        {
            "properties": {
                "dataCollectionRuleId": "/subscriptions/$SubscriptionID/resourceGroups/$ResourceGroup/providers/Microsoft.Insights/dataCollectionRules/$DCRName"
            }
        }

"@

Invoke-RestMethod -Uri $requestURL -Headers $AuthenticationHeader -Method PUT -Body $body

#(Optional example). Associate another DCR to Monitored Object
#See reference documentation https://learn.microsoft.com/en-us/rest/api/monitor/data-collection-rule-associations/create?tabs=HTTP

$requestURL = "https://management.azure.com$RespondId/providers/microsoft.insights/datacollectionruleassociations/$associationName`?api-version=2021-09-01-preview"
$body = @"
        {
            "properties": {
                "dataCollectionRuleId": "/subscriptions/$SubscriptionID/resourceGroups/$ResourceGroup/providers/Microsoft.Insights/dataCollectionRules/$DCRName"
            }
        }

"@

Invoke-RestMethod -Uri $requestURL -Headers $AuthenticationHeader -Method PUT -Body $body

#4. (Optional) Get all the associatation.
$requestURL = "https://management.azure.com$RespondId/providers/microsoft.insights/datacollectionruleassociations?api-version=2021-09-01-preview"
(Invoke-RestMethod -Uri $requestURL -Headers $AuthenticationHeader -Method get).value

Don’t forget to remove also the elevated access. It is explained the Microsoft documentation.

Troubleshoot

  • You can find a log connector under Program Files \Azure Monitor Agent
  • When you execute the CollectAMALogs.ps1 then a folder on the Desktop with logs will be generated
